Fast turnaround
Automated swapping takes under 25 seconds; DJI specifies under 45 seconds from landing to the next takeoff.
Note: Swap timing starts when the cover is fully closed; both figures are controlled-test results.

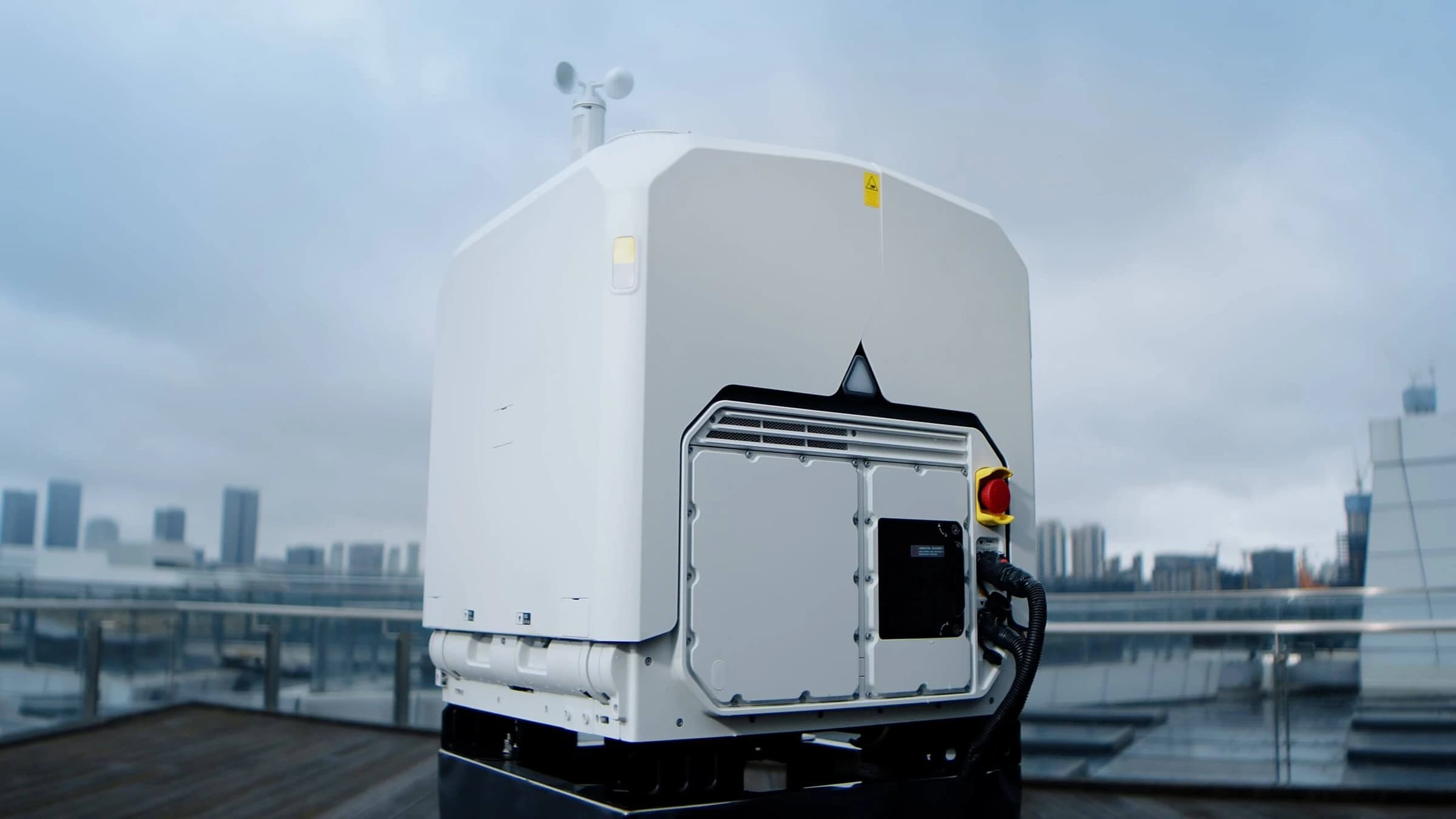

Dock 4 · Matrice 5TD
Battery swaps for continuous remote workflows
Dock 4 combines automated battery swapping, the multisensor Matrice 5TD and a separate O4 Ground Station. Plan the site, turnaround and remote workflow as a complete system.
- Battery swap
- <25 s
- 5TD max. flight
- 59 min
- Dock protection
- IP56
- Native thermal resolution
- 1280 × 1024
Figures are DJI test values under specified conditions. Actual performance varies with load, environment and configuration; see the specification notes.
Understand what it can do
Remote & dock operations
Battery swaps for continuous remote workflows
DJI official product information5TD day and night imaging
Three 50 MP visual cameras, 252 mm telephoto and native 1280×1024 thermal imaging support visual/thermal fusion views.
Multisensor environment sensing
Rotating LiDAR, mmWave radar and binocular vision sense obstacles; performance depends on the environment and targets.
Position communications independently
The O4 Ground Station can be mounted separately for communications and RTK; FlightHub 2 manages remote missions and devices.
Swap batteries, continue the mission
Automatic battery swapping runs alongside data transfer. The 25-second test measures from full cover closure to swap completion, not landing to the next takeoff.
Discuss your configurationDispatch remotely
Remote commands connect to dock launch workflows for recurring patrols and timely response. Deployment, connectivity and operating permissions must be confirmed.
Discuss your configurationOfficial DJI demonstrations. Configuration and results depend on equipment, software versions and operating conditions.
Confirm the complete deployment
Select a direction to explore and include it in your enquiry. These are not confirmed sales packages.
Dock and aircraft
Start with Dock 4 and Matrice 5TD; confirm spare batteries and turnaround needs. 4D/4TD are a different dock aircraft family.
Enquire about this optionKey specifications, with conditions
Compare models, operating modes and optional equipment separately, rather than relying on peak figures.
| Automatic battery swap | <25 sCover fully closed to swap completion. |
|---|---|
| Operational turnaround | <45 sLanding to next takeoff, controlled test. |
| Dock battery storage / parallel charging | 3 / 2 |
| Battery charging | 27 min25 °C, 15% to 95%. |
| Max. flight time | 59 min5TD without payload, 20 m altitude, no wind, 15 m/s to 0% battery. |
| Native thermal resolution | 1280 × 1024UHR output 2560×2048 is not native resolution. |
| Ingress protection | Dock IP56 / aircraft IP55Protection can decline with wear; this does not mean operation in all weather. |
| Operating temperature | −40–50 °C |
| Dock weight | 66 kgExcludes stored batteries and aircraft. |
| AC input | 100–240 V · ≤2000 W |
| Max. wind resistance | 12 m/s |
Questions before you buy
Can the dock operate immediately after purchase?
Site, power, grounding, network and communications checks, cloud setup and commissioning are still required. Share the deployment location and mission area to confirm requirements.
What will the quotation include?
We will itemise the aircraft, task systems or accessories, batteries, charging equipment and requested software/services. Images and capabilities do not mean everything is included; the confirmed quotation defines the package.
Build the quotation around your project
Tell us about the task, delivery region and existing equipment. We will check configuration, services, price and lead time. Submitting this form does not place an order or take payment.
