Airspace Security · Drone Payload

YunScan001

Airborne drone detection for the DJI Matrice 400

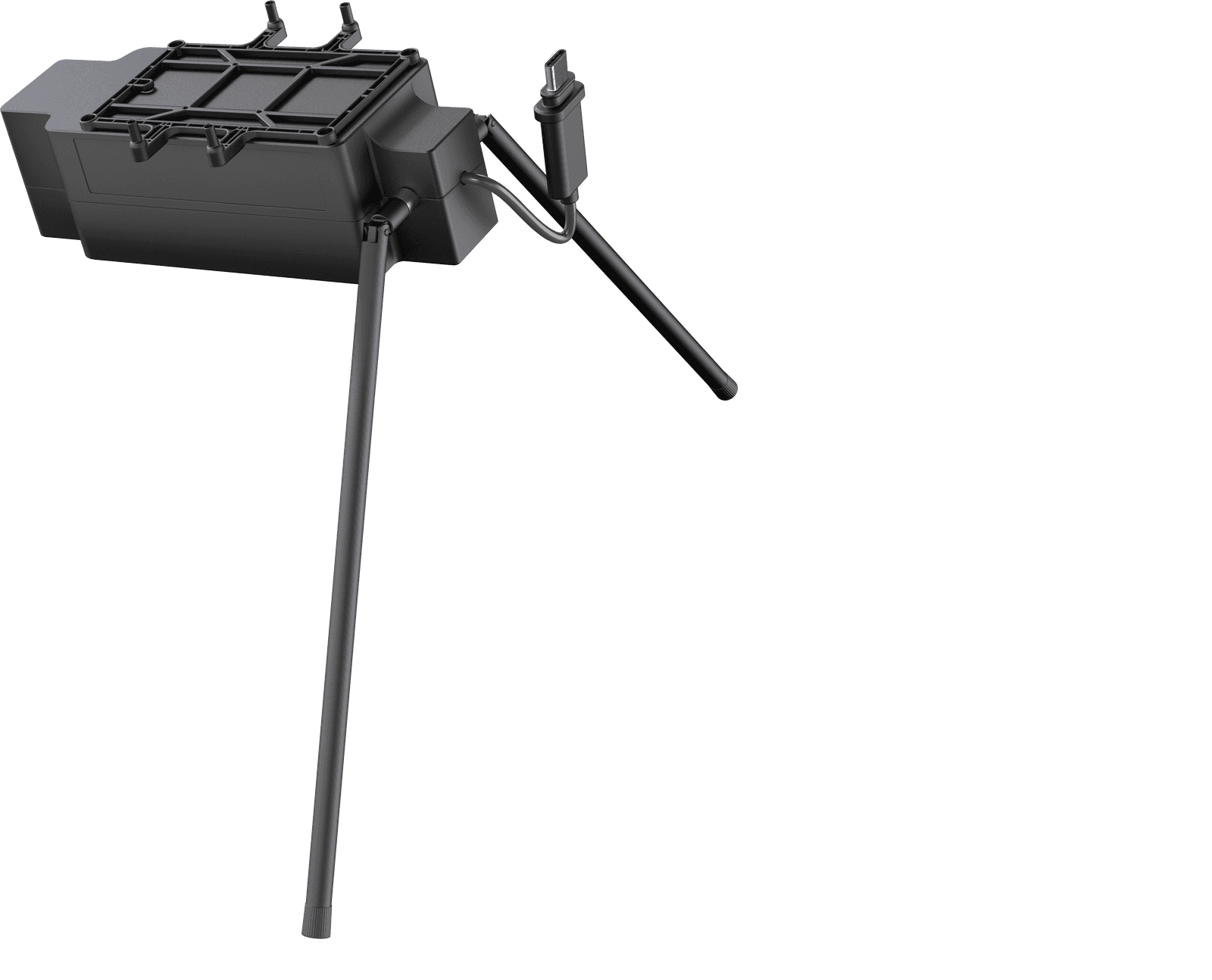

YunScan001 mounts under the DJI M400 and turns it into a flying detection node. From the air it picks up drone signals within a 10 km radius, identifies model and serial number, and shows both the drone and its operator on the DJI Pilot 2 screen, without the terrain and building blind spots of ground-based systems.

Request a demo

≥10 km

Detection radius (open field)

≥20

Targets tracked simultaneously

≤350 g

Module weight

≤3 min

Installation time

Core capabilities

360° dual-band detection

Scans 2.4 GHz and 5.8 GHz simultaneously with an omnidirectional antenna and decodes Remote ID broadcasts to ASTM F3411 and ASD-STAN prEN 4709-002.

Model and identity

A built-in model library recognises the full DJI lineup as well as brands such as Autel and Skydio, and extracts serial numbers and unique UAV identifiers.

Operator location

Shows the operator's live position and take-off point, with a QR code on the controller that navigates ground teams straight there. Average detection time is under 30 seconds.

Integrated with DJI Pilot 2

Detection data appears on the same screen as the flight view. Over MQTT 5.0 it streams directly to the cloud platform for logging, track replay and integration with existing security systems.

Complete evidence chain

Records identity, position, flight track, speed, heading and detection time for every target, so each incident can be documented and reviewed afterwards.

Plug and play

Non-invasive belly mounting on the M400's factory mounting points, powered via E-Port V2, with tethered power for long missions. No modification to the aircraft.

On the DJI controller

The YunScan plugin for DJI Pilot 2 puts detection data right next to the flight view.

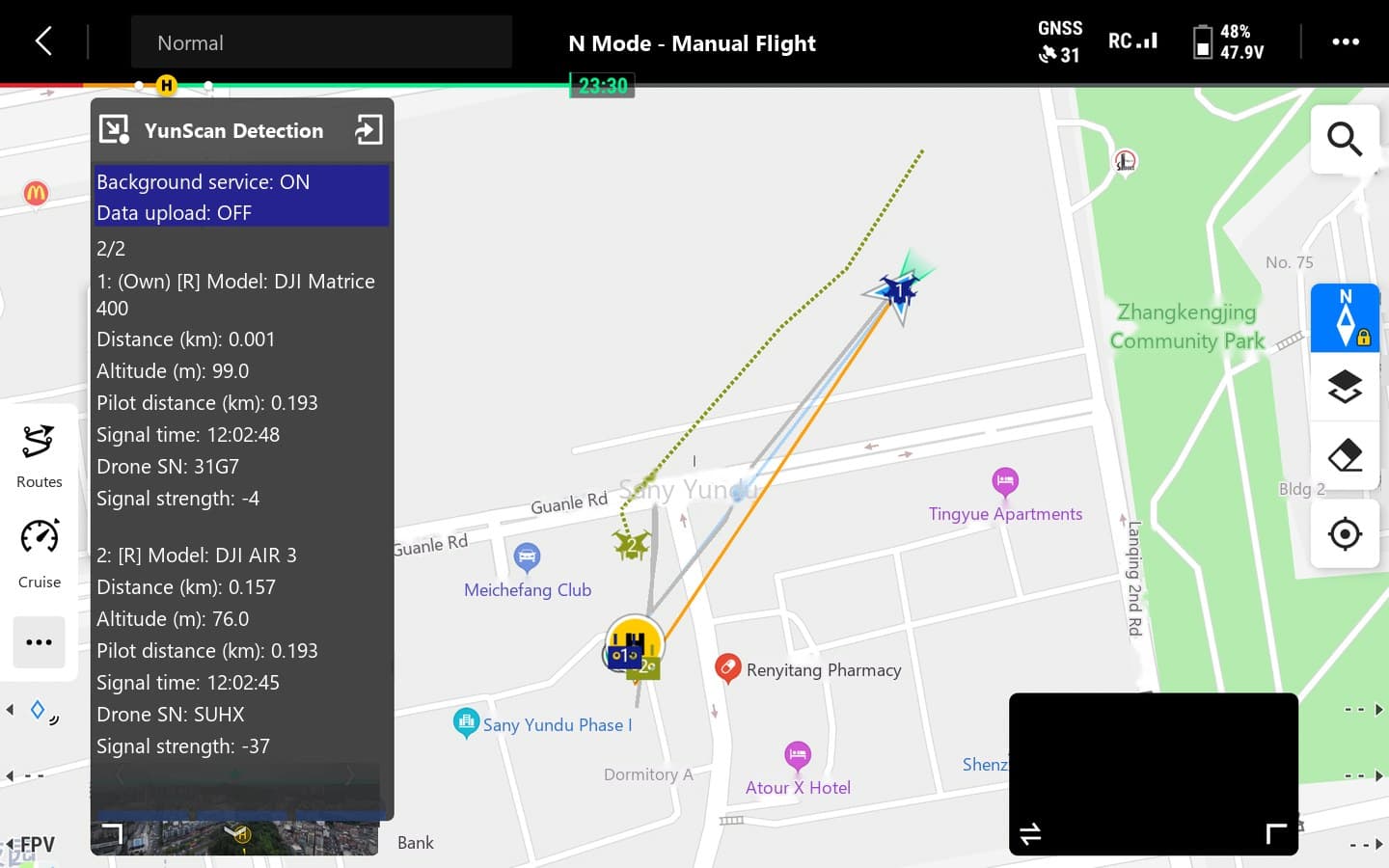

Compact mode

Target count and alert status at a glance during the mission.

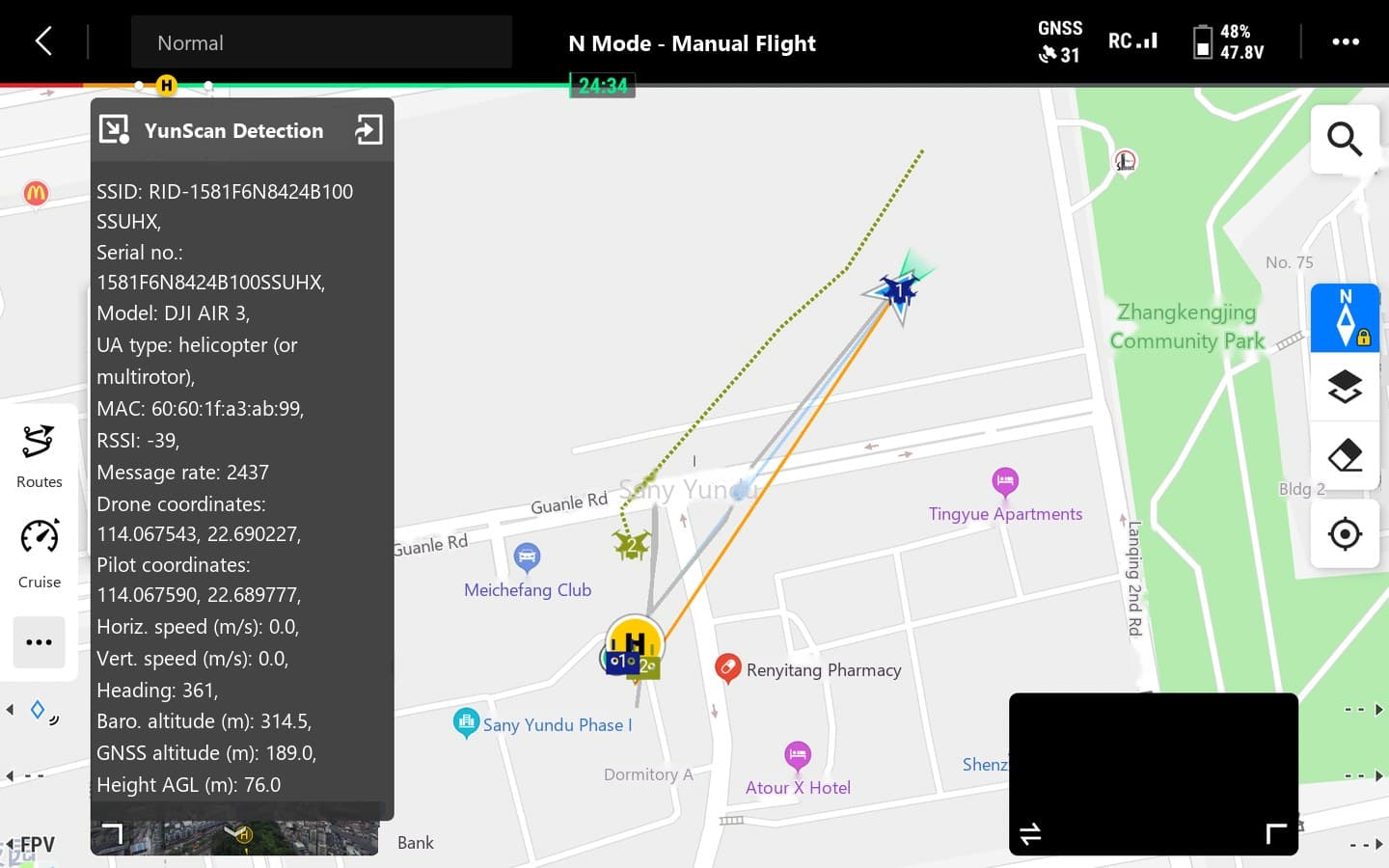

Detail mode

Model, serial number, distance, altitude and signal strength for each target.

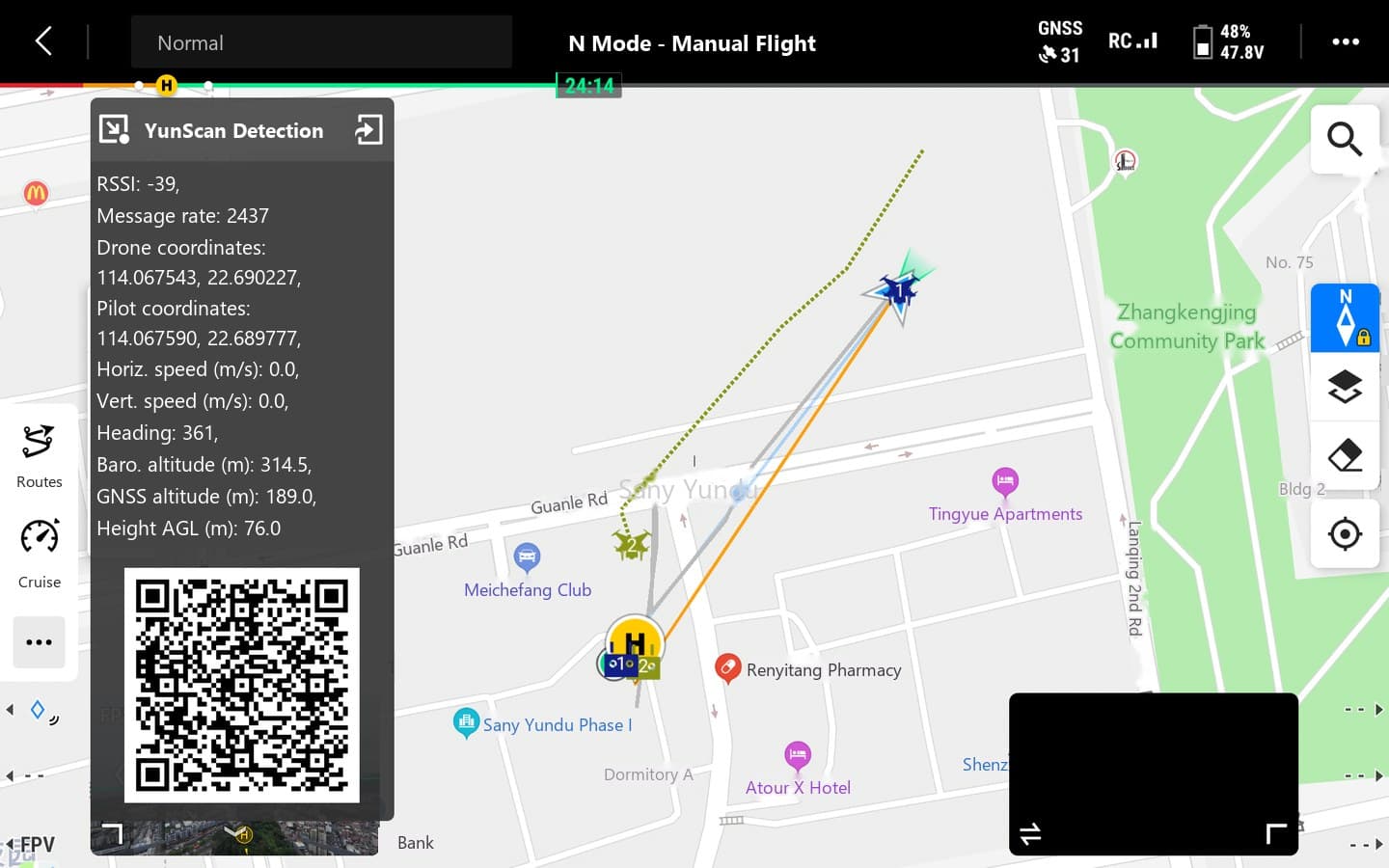

Operator navigation

Scan the QR code to navigate straight to the operator's position.

Application scenarios

Major events

Patrol preset routes around venues and keep continuous watch over the airspace throughout the event.

Law enforcement & emergency response

Take off quickly, cover the low airspace and verify suspicious drones at close range together with ground teams.

Airports

Detect intrusions into clear zones early, from a viewpoint that ground sensors cannot reach.

Energy & petrochemical sites

Patrol perimeters and tank farms in complex terrain without blind spots.

Critical infrastructure

Regular patrols over government sites, utilities and other key areas.

Specifications

Compatible aircraft	DJI Matrice 400 (E-Port V2)
Mounting	Non-invasive belly mount on factory mounting points, no modification
Detection range	≥10 km (open field)
Frequency bands	2.4 GHz / 5.8 GHz, simultaneous
Antenna coverage	360° horizontal
Simultaneous targets	≥20
Remote ID standards	ASTM F3411, ASD-STAN prEN 4709-002
Detectable drones	Full DJI consumer and enterprise lineup; Autel, Skydio and other brands via Wi-Fi / video-link protocols
Power supply	Via the aircraft (E-Port V2); tethered power supported
Installation time	≤3 min
Dimensions	150 × 55 × 45 mm
Weight	≤350 g
Operating temperature	-20 °C to 50 °C
Ingress protection	IP43
Data interface	MQTT 5.0
Certifications	CE, FCC, CNAS; DJI PSDK authorised
